Best QualityTravelling Microscope Vertical & Horizontal with wooden
Product Code : NKSW 002
Brand Name : N. K. SCIENTIFIC WORKS

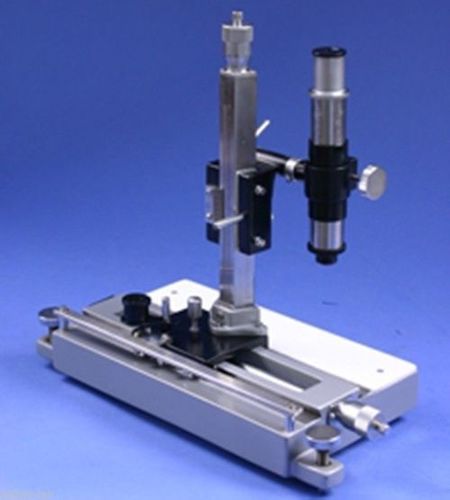

Travelling Microscope consists of a cast iron base with machined-Vee-top surface and is fitted with three levelling screws. A metallic carriage, clamped to a spring loaded bar slides with its attached vernier and reading lens along an inlaid strip of metal scale. The scale is divided in half millimeters. Fine adjustments are made by means of a micrometer screw for taking accurate reading. Both vernier reading to 0.01mm or 0.02mm. Microscope tube consists of 10x Eyepiece and 15mm or 50mm or 75mm objectives. The Microscope, with its rack and pinion attachment is mounted on a vertical slide, which too, runs with an attached vernier along the vertical scale. The microscope is free to rotate n vertical plane. The vertical guide bar is coupled to the horizontal carriage of the microscope. for holding objects a horizontal stage made of a milki conolite sheet is provided in the base.
